Worldenvironment
|
| Sky
Around |

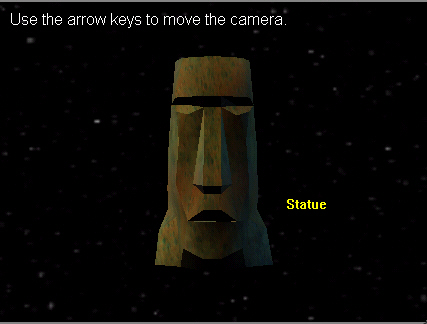

| 此範例可以和「Set
Background Image」作一個比較。主要是觀察Statue在封閉六面的Texture裡所表現出來的效果。 |
|

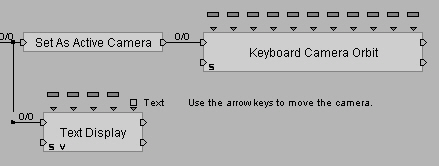

(a) Sky Around－World Environments/Background/Sky Around |
| (b)
Set As Active Camera－Cameras/Montage/Set As Active Camera |
| (c)
Keyboard Camera Orbit－Cameras/Movement/Keyboard Camera
Orbit |
|
(d) Text Display－Interface/Text/Text Display |
| 利用Building
Blocks－Sky Around設定六個Texture使產生一個封閉且圖形連續的六面體，且配合Building
Blocks－Keyboard Camera Orbit讓Camera以供旋轉與鏡頭調整以便於觀察Statue在背景下的效果。 |
|

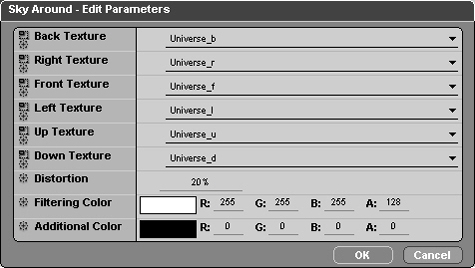

Sky
Around：依次設定Back Texture、Right Texture、Front
Texture、Left Texture、Up Texture與Down Texture的Texture；扭曲百分比Distortion－20%；設定Filtering
Color(R, G, B, A)－(255, 255, 255, 128)；Additional
Color(R, G, B, A)－(0, 0, 0, 0)。
|
| Set
As Active Camera：設定現在所使用的Camera。 |

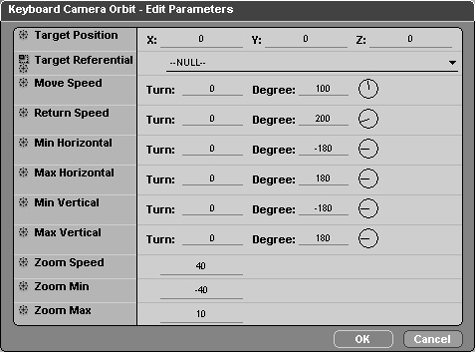

| Keyboard
Camera Orbit：設定所轉動的參考點Target Position(X, Y,
Z)－(0, 0, 0)；參考的目標Target Referential－'-NULL-'；Move
Speed(Turn, Degree)－100；Return Speed(Turn, Degree)－200；Min
Horizontal(Turn, Degree)－-180；Max Horizontal(Turn,
Degree)－180；Min Vertical(Turn, Degree)－-180；Max
Vertical(Turn, Degree)－180；Zoom Speed－40；Zoom
Min－-40；Zoom Max－10。 |
|
|
|
 |
